Description

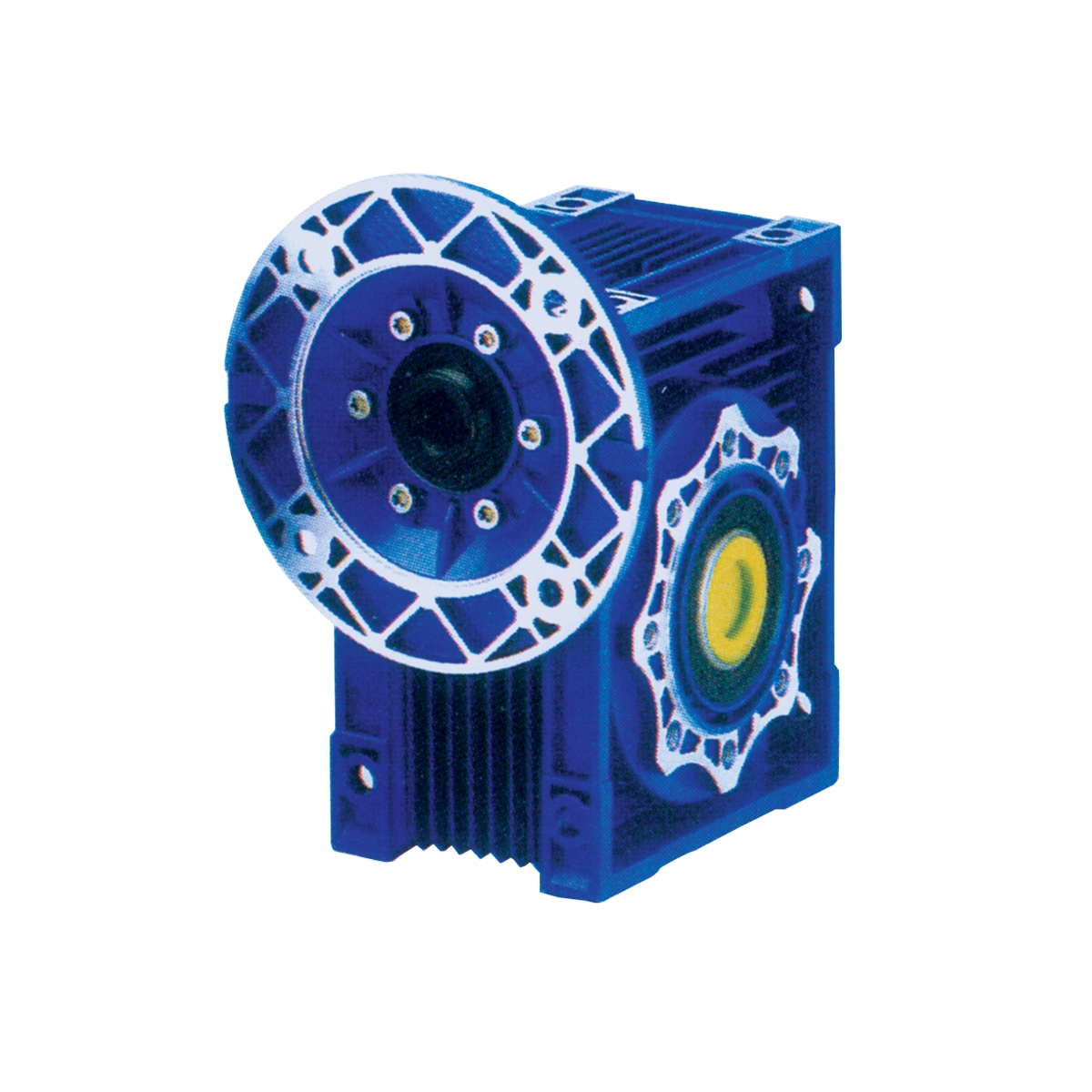

GIRI Worm Gear
- From NmRV 040 - 155
- Ratio 7.5 - 100
- NMRV – Sizes: 040-050-063-075-090
- Available versions: fitted for motor coupling, with input shaft, with torque limiter
- Power up to 0.75 kW
- Cases up to 110 in die-cast aluminium alloy and over 130 in G200 grey cast iron
- Ratios between 5 and 100
- Max torque 1.550 Nm and admissible radial loads max 18.000 N
- Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
| Specification: | NMRV050-P16014-10 |
| Ratio: | 10 |
| Kilowatt (kW): | 0.37kW |
| Gear Torque Nm: | 22 |
| Weight (Kg): | 3.5kg |
